Inkjet Printer
Home / High Resolution Inkjet Printer
High Resolution
Inkjet Printer
Offering exceptional print quality for detailed images and text, perfect for packaging and product marking.
- Simple, Easy and Clean.
- 300 dots 600 dpi nozzles integrated ink catridge model.
- High quality IJP suggestions at a low price, finally appeared in KGK brand!
Product Details
Printing Method: | Thermal and On-demand |
Can handle the maximum line speed: | Subject to 30.48 m/min. (600 dpi)* Character Pitch, Intensity Setting |
Nozzle Array: | 300 Dots 600 dpi |
Ink Jet can be Directional: | Next below |
Character Height: | 12.7mm |
Per Head: | 1 |
Ink Types: | Black: TK402 |
Workpiece Detection: | Photoelectric Sensor |
Printing Plate Number: | 1-4 |
Number of Register Messages: | 1000 Messages |
1 Message per Number of Registered Modules (Word).: | 32 Module |
Module 1 (Word) Registration Number of Characters per: | 256 Characters (if the text module) |
Character Types: | Alphanumeric Characters, Symbols and Hiragana, Katakana, Kanji (JIS 1st & 2nd) |
Character Font: | True type fonts (serif, serif) |
Printing Date Time (Calendar): | Year(Western / Japanese calendar), month, day, time (12 / 24, minutes, seconds, day) |
Numbering: | Maximum 10 Digits Down, Repeating the Incremental Value Settings, Zero Press |
Barcode Printing: | ITF, Code128, Code39, NW7, JAN |
2D Code: | QR, DataMatrix and PDF417 |
Shape: | Reading From Two BMP Files |
External Interface: | USB and Parallel Output |
Use Environment: | 5°C to 35°C, 10-80% RH (no condensation that) |
Power Supply: | AC 100 V 50 / 60 Hz 100 Watts or less |
Grounding: | D Seed Ground |

600 dpi high quality IJP at low prices.
High quality printing is possible using 300 dots 600 dpi nozzles integrated ink cartridge to the print head.
QR code, DataMatrix and various barcode, Logo, Date and lot number can be printed on beautifully!

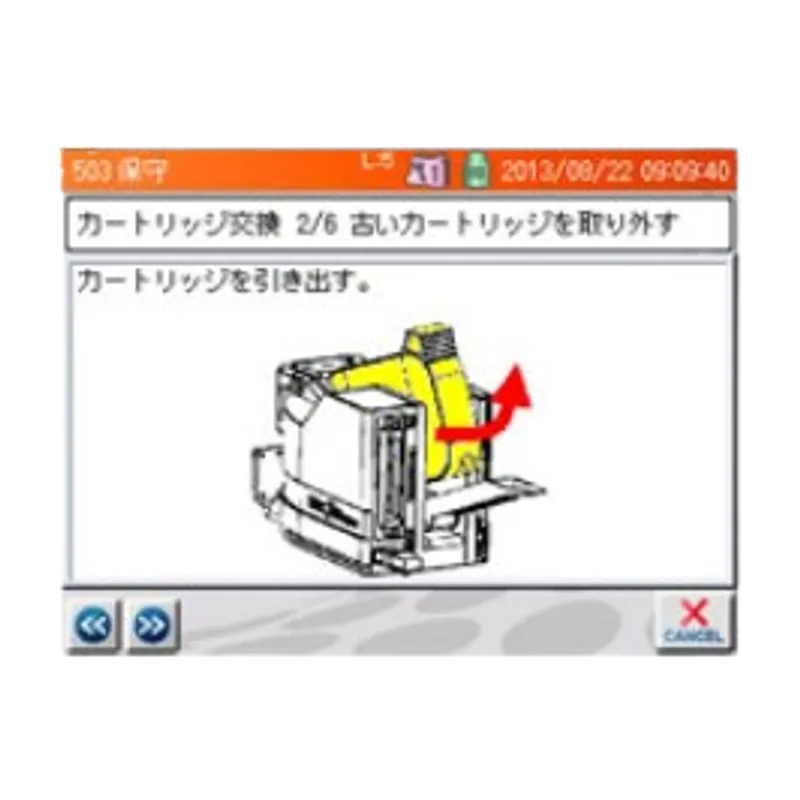

Replace the cartridge with one touch
Replace the ink cartridge and nozzle too at the same time.
Speedy recovery is possible even in case of nozzle trouble.
Cartridge replacement is fairly simple and easy.


Operation is easy and safe
Can be intuitive operation by employing full-color touch panel, easy-to-understand screen configuration
With Ink cartridge with memory and auto-electronic management. You can prevent problems caused by using the wrong power management, ink and old ink.
Easy to set up body controller with ultra lightweight & compact printhead.


Encoder, RS232C, I/O expansion unit-equipped, further enhance functionality.
Allows for connection with external devices.
Keep the conveyor speed fluctuations and manage always a more stable printing quality
Can be controlled from an external equipment operation.
